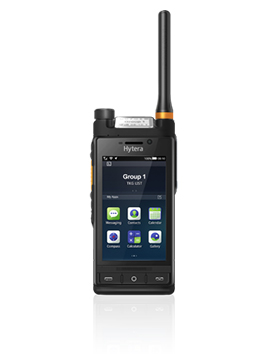

PTC760
Broadband and Narrowband Converged
Crystal Clear Critical Voice
Multiple Security Assurances
Quick Charging
Mission Critical UI design
One hand operation
Quick press to view critical information
Rich information on the home page, customized favourites
Technical Features
- Open Secondary Development Interface to Erich Services and Applications
- Broadband and Narrowband Converged
- Crystal Clear Critical Voice
- Multiple Security Assurances
- Quick Charging
Product Features
- Efficient Batch Programming and Upgrade
- Effective Data Collection and Security Analysis
- Rich Third Party APIs
- Quick Configuration and OTAP Programming
- Multiple Group and Permission Control
- Diversified Services
| Standards and Frequencies | |
|---|---|
DMR Analog | ETSI DMR Tier Ⅱ, Ⅲ 350-527 MHZ |
| TETRA | 350-470 MHz |
| LTE | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B38/B39/B40/B41 |
| CDMA | CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0 |
| WCDMA | B1/B8 |
| TD-SCDMA | B34/B39 |
| GSM | 850/900/1800/1900MHz |
| Wi-Fi | 802.11 b/g/n, 2.4GHz |
| NFC | 13.56MHz |
| Dual BT | V4.2 LE+EDR |
| Positioning System | GPS, GPD/BDS, GPS/GLONASS |
| Sensors | Proximity Sensor Ambient Light Sensor 6-axis E-Compass Barometer Gyroscope Accelerometer |
| Battery | |
|---|---|
| Standard | 2900 mAh Li-polymer |
| Optional | 4000 mAh |
| Battery Life | Standard Battery : 14h 12h voice(5:5:90)+2h video Optional Battery : 20h 18h voice(5:5:90)+2h video |
| Video and Imaging | |
|---|---|
| Video File Types | 3GPP(.3gp), MPEG-4(.mp4), QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm), MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv) |
| Image File Types | JPEG(.jpg), GIF(.gif), PNG(.png), BMP(.bmp) |
| Video Recording Quality | Front Camera: 1080P HD up to 30 frames per second(fps) Rear Camera: 4K HD |
| Watermark | Video and imaging |
| Audio | |
|---|---|
| File Types | MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3) |
| Input | Triple Mic Noise Suppression Wind Noise Suppression Echo Cancellation |
| Environment Performance | |
|---|---|
| Dust and Water Proof | IEC 60529-IP67 |
| Shock and Vibration | MIL STD 810 C,D,E,F,G |
| Operating Temperature | -20°C- 60°C |
| Storage Temperature | -40°C - 85°C |
| Transceiver |
|---|
| ITEM | DMR/Analog | TETRA |
|---|---|---|
| Channel Spacing | 25/20/12.5 kHz | 25 kHz |
| TX Power | 1W/4W | 1W (class 4) & 1.8W (class 3L) |
| RX Sensitivity | ≤ -121 dBm | Static: ≤ -116 dBm (-117 dBm typ.) Dynamic: ≤ -106 dBm (-109dBm typ.) |
| Inter-modulation | ≥ 65 dB | ≥ 62 dB |
| Blocking | ≥ 84 dB | 50 kHz to 100 kHz ≥ 69 dB 100 kHz to 200 kHz ≥ 74 dB 200 kHz to 500 kHz ≥ 79 dB ＞ 500 kHz ≥ 84 dB |
| Suppression of Spurious Response | ≥ 70 dB | ≥ 64 dB |
| Frequency Stability | ± 0.5 ppm | ± 0.5 ppm |
| Antenna Impedance | 50 Ω | 50 Ω |
| Audio Output | 2W (Rated) | 2W (Rated) |
| Audio Distortion | ≤ 3% | ≤ 3% |
| Microphone | NRR: 30dB (Static), 20dB (Non-static) AEC: > 60dB | NRR: 30dB (Static), 20dB (Non-static) AEC: > 60dB |
en_Multi-mode Advanced Radio_Brochure update: 2024-11-19 |
