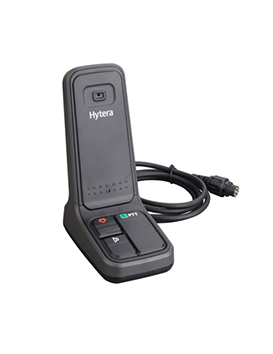

SM10A1

Highlights:
1.New design; electret microphone.
2.10-pin aviation connector.
3. An amplifier circuit can help provide audio with high gain over a wide frequency range.
4. A large sized PTT key and lockable Monitor key make your operation more convenient.

Microphone Specifications:
Sensitivity: -32±5dB @ 1KHz（0dB＝1v/Pa）;

Direction: omni-directional;
Distortion: ＜1％ @ 1KHz;S/N: ≥60dB

Dimensions: 107*65*148.6(mm);

Weight: about 164g;

Operating Temperature: -25℃~65℃

Application: for dispatcher in the control center.

Compatible Radios:MT680,MD780,MD880T
