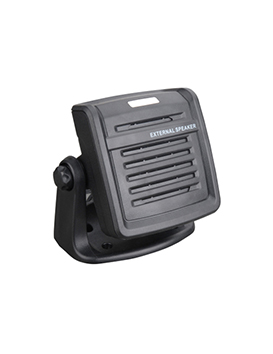

SM09D1

Highlights:
1.Being mountable on a horizontal or vertical surface.
2.The fixing bracket is adjustable.
3.The large speaker with high output power provides clear audio even under noisy environment.
4. DB26 pin audio port.

Speaker Specifications:
Rated Impedance: 8Ω±15% （@ 500Hz）;
Sound Pressure Level: 88±2db (1w/1m)（@ 600/700/800/900Hz AVE）;
Rated Power: 15W   Max. Power: 20W;
Dimensions: 155.6*92.5*140.2(mm);

Weight: about 774g;

Operating Temperature: -25℃~65℃

Application: for broadcasting.

Compatible Radios:MT680,MD780,MD880T
