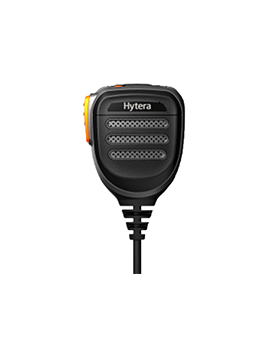

SM26M1

 1. Fashionable overmolding design;

2. Swivel belt clip for convenient wearing;

3. Small and light design for comfortable wearing;

4. IP54 compliance;

5. 2.5mm external audio connector for private and secret communication;

 Speaker specifications:

1) Sound pressure level: 97±3dB (300 to 3000Hz average 1W, 30cm)

2) Impedance: 20Ω±15%@1kHz

3) Power: 2W(rated) /3W(max)

Microphone Specifications:

1) Sensitivity: -42±3dB@1kHz 3v 2.2k 0dB=1v/Pa

2) Output Impedance:  ≤2.2kΩ

Operation Temperature: -30 to 75°C

Storage Temperature: -40 to 85°C

PTT key life ≥ 100000

IP class: IP54
