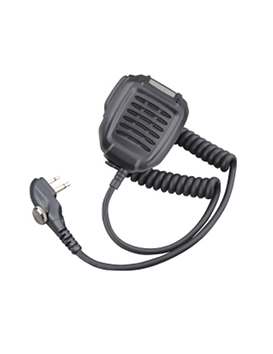

SM08M1-Ex

 Highlights:
 1. Ease of use and compact size.
 2. With Φ3.5mm external earpiece jack.
 3. FM approved.

Speaker Specifications:
Rated Impedance: 6Ω±15% （@ 1.5kHz 1V）;
Sound Pressure Level: 92±2db (1w/30cm)（@ 1.0/1.5/2.0kHz AVE）;
Rated Power: 1W   Max. Power: 2W;
Inductance Value: Max 80uH (@ 10KHz）;

Microphone Specifications:
Sensitivity: -42±3dB @ 1KHz（0dB＝1v/Pa）;
Direction: omni-directional;
Weight:about 140g;

Operating Temperature: -30℃~60℃

Application: for users who work in a location with explosive materials.

Compatible Radios: TC-700ExPlus
