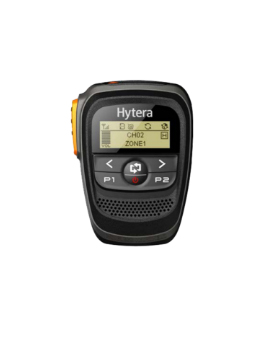

SM27W1

Highlights:

1. Support USB charger

2. Solve the restriction of cable

3. Better penetrability

4. Volume and Channel adjust

5. Convenient to operate

Applications:

Mobile dispatching, police dispatching fields.

Specifications:

- Speaker specification

Sensitivity: 97±3dB(1w/30cm)@300Hz-3KHz AVE;

Rated power: 2W Max.power:3W;

Rated impedance: 4Ω±15%@1.5KHz 1V(variable with frequency)

- Microphone specifications

Sensitivity: -42±2dB @ 1KHz (0dB = 1v/Pa)

Directionality: omni-directional

- PTT cycles≥100000

- Communication range: 10-30m

- Operation temperature: -20～60℃

- Charge time ≤ 3h

- IP Class: IP54

Applicable Radio:

MD78X, MD65X

Note: SM27W1 should adapt to ADA-01
