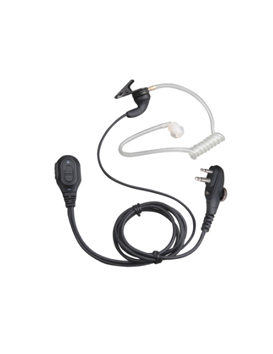

EAM12

Speaker Specifications
Sensitivity: 112±3dB(Single part) ;
Rated Power: 10mW   Max. Power: 30mW;
Distortion (typical): ＜5％ @ 1KHz;
Speaker Impedance: 32Ω±15% @ 1KHZ;

Microphone Specifications:
Sensitivity: -42±3dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa ;

Operating Temperature: -20℃~60℃

Application: for users engaged in public security.

Compatible Radios:TC-700,TC-610,TC-618,TC-626,TC-620, TC-518, TC-580,TC-446S,TC-508,POWER446


Speaker Specifications
Sensitivity: 112±3dB(Single part) ;
Rated Power: 10mW   Max. Power: 30mW;
Distortion (typical): ＜5％ @ 1KHz;
Speaker Impedance: 32Ω±15% @ 1KHZ;

Microphone Specifications:
Sensitivity: -42±3dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa ;

Operating Temperature: -20℃~60℃

Application: for users engaged in public security.

Compatible Radios:TC-700,TC-610,TC-618,TC-626,TC-620, TC-518, TC-580,TC-446S,TC-508,POWER446
