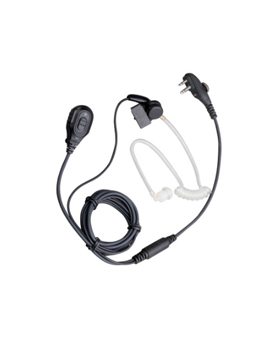

EAM13

Highlights:
1) Transparent tube for secrect communication.
2) Detachable parts for easy replacement.
3) PTT-ON-MIC design.
4) PTT and SPK separated for secrect communication.
5) PTT/ VOX switchable.

Speaker Specifications:
Sensitivity: 112±3dB(Single part) ;
Rated Power: 10mW   Max. Power: 30mW;
Distortion (typical): ＜5％ @ 1KHz;
Speaker Impedance: 32Ω±15% @ 1KHZ;

Microphone Specifications:
Sensitivity: -42±3dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa ;

Operating Temperature: -20℃~60℃

Application: Application: Ideal for discreet communications in public security and safeguard activities.

Compatible Radios: TC-700, TC-610,TC-618,TC-626,TC-620
