DMR Radio

DMR Professional Digital Radio

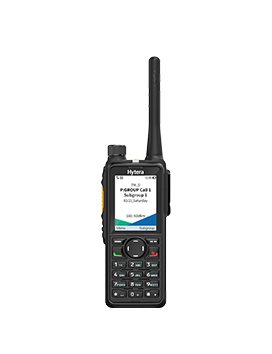

HP788

The HP788 represents the future on style and functions that refresh the standards in digital radios, providing more efficient and more reliable communication with loud and clear audio, powerful battery, remarkable portability, and ruggedness for ease of use across multiple environments and industries.

  THINNER AND LIGHTER


An optimized mechanical design and a compact lithium polymer battery that fits discreetly into the HP788's design make the radio only 29.5mm thick and 3100g in weight.


  ENHANCED COVERAGE


Increased receiver sensitivity extends the coverage range and improves audio quality in weak signal areas.


  BIG DISPLAY AND NEW UI


The 2.4-inch color display provides a brand new intuitive UI to improve the user experience. A Quick Access Menu that allows users to access frequently used menus more easily. Messages are listed in the conversation for quick reading and review. User profiles can be configured to set audio parameters for different operating environments.


  LOUDER AND CLEARER AUDIO


The HP788 has louder and clearer audio through an optimized forward-facing speaker and AI-based noise cancellation that decreases the unwanted background noise and howling and improves communication efficiency.


  LONGER BATTERY LIFE


The latest in proven lithium polymer technology is used in the battery used with the HP788 . The battery is lighter and smaller than ever before, yet still delivers 24 hours of battery life (5/5/90) to provide radio operation for your entire shift.


  HIGHER LEVEL OF RUGGEDNESS


HP788 is designed as per the MIL-STD-810G. It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete. No matter where the mission drives the officer, the HP788 is the partner to count on, because it can stand up to the toughest environment.


General
Frequency

UHF: 350-470 MHz VHF: 136-174 MHz

Channel Capacity
1024
Zone Capacity
64
Dimensions(W×H×D)
132 x 55 x 29.5mm
Weight310g
Display2.4 inch LCD
Keypad
Full Keypad
Battery Life (5-5-90 Duty Cycle)24h (GNSS disabled) 20h (GNSS enabled)
PositioningGPS/BeiDou/Glonass/Galileo/AGPS
Dust & Water Intrusion
IP68
Shock and VibrationMIL-STD-810G
Brochure

update: 2022-03-02

Download ↓
