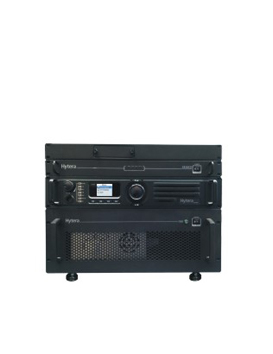

Hytera DMR Simulcast System

DS-6310

The Hytera DS-6310 Simulcast system is based on the open DMR standard, allowing operation of a conventional DMR radio system (DMR Tier II) as a simulcast network, broadcasting the same signal across multiple overlapping sites on the same frequency, simultaneously. Delivering reliable DMR radio coverage over large areas, the Hytera simulcast system is ideal for utility companies, public transport organisations and associated organisations who operate with limited RF resource across a wide area. If you need to modernise your existing analogue or simulcast system, requiring frequency-efficient radio coverage over a large area, with the benefits of DMR Tier II digital functionality, then speak to one of our Hytera Partners today.

The Hytera Simulcast System

The Hytera Simulcast System comprises of DS-6310 base stations and at least one Mobile Switching Office (MSO) per 100 base stations. The individual network constituents are connected with each other via an IP transport network. The base station of the simulcast system has the tried-and-tested RD985s repeater technology from Hytera at its core (maximum of 2 per base station).

Modular in structure for ease of operation and maintenance, the Hytera simulcast system can be operated with both line dispatcher (LDS) and radio dispatcher solutions for efficient communication and simple management of the radio subscribers.

The Network Management System ensures efficient administration of the mobile radio system by providing comprehensive functions for monitoring, operation and maintenance. In addition, configuration of software and hardware components is facilitated. Several workstations can be connected thanks to its client-server architecture, whilst central management of network elements and software updates can be controlled by remote access. Gateway configuration for PABX or PSTN connection is also possible, permitting communication between the radio system and telephones via SIP protocol.

Smooth Roaming and Handover

Users on the Hytera Simulcast system can move between sites without having to worry about changing channels, and dispatchers can rely on transmissions being broadcast from all sites simultaneously with received communications being automatically channelled through the site with the strongest received signal.

Extensive range of compatible devices

The simulcast system is based on the DMR standard for conventional digital radio (DMR Tier II). This ensures compatibility with numerous Hytera radios - Analogue or DMR.

Full-area radio coverage with just one frequency pair

The simulcast technology means that only one frequency pair is required for the mobile radio system, irrespective of the number of base stations in the network.

Analogue and Digital Operation

The Hytera simulcast system is capable of both analogue and digital operation. CTCSS and CDCSS signalling systems are supported in analogue mode. However, the greatest value is obtained in digital mode. Here, two calls can take place simultaneously on one frequency and data transmission services are also available.

Increased capacity through intelligent system management (Subnetting)

Using the network management software, the simulcast system can be divided into different subnets depending on base stations and the time slots of a repeater. Each subnet operates as an independent mobile radio system and can provide additional capacity in certain areas. Subnets can be temporarily connected with each other in order to react quickly to changed conditions.

High voice quality thanks to "Dynamic Voting"

The excellent voice quality of the simulcast system exploits the strengths of digital radio to the full. In addition, the system also ensures that ideal voice quality is guaranteed in areas where the radio coverage of two base stations overlaps. The mobile switching office ensures, by means of quality check, that the best radio signal is forwarded and broadcast in each case.

Flexible IP Network

The IP-based system architecture provides flexible networking and makes low demands of system connections. Based on commercially available network technology such as servers, switches and routers, the IP transport network of the simulcast system is cost-effective to maintain and upgrade.

General
Operating Frequency		VHF: 136–174MHz; UHF3: 330–400MHz; UHF1: 400–470MHz
Standard Compliance		DMR Tier II
BS Capacity per MSO		100
Carrier Capacity per MSO		200
Subnet Capactiy		99
Carrier Capacity per BS		1 or 2
Channel Spacing		≥12.5kHz
Duplex Spacing		VHF≥5.3MHz ; UHF1/UHF3≥10MHz
Multi-access Method		TDMA
Modulation		4FSK (index: 0.27)
Modulation Rate		9.6Kbps/carrier
Full Load Power Consumption		Single-carrier BS≤200W; Dual-carrier BS≤400W
Operating Humidity		5% to 95%RH
Dimensions (HWD)		Single-carrier BS:355425482.6mm; Dual-carrier BS:900600600mm
Weight		Single-carrier BS≤50kg; Dual-carrier BS≤110kg
Transmitter
TX Power		1 to 50W (adjustable)
Output Power Tolerance		Normal: ±1.5dB; Extreme: –3 to +2dB
Modulation Accuracy		5%
Frequency Offset		±16Hz
Adjacent Channel Power Rejection		≤60dB (12.5kHz)
Receiver
Static Sensitivity		-118dBm@BER5%
Blocking		≥84dB
Co-channel Rejection		–12 to 0dB (12.5kHz)
Adjacent Channel Selectivity		≥60dB (12.5kHz)
Intermodulation Response Rejection		≥70dB
Spurious Emission		≤–57dBm@100kHz

All specifications are subject to change without notice due to continuous development.
