Unified communication platform
Hytera SmartOne Solution

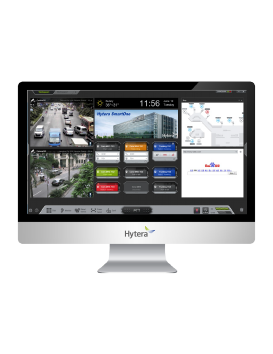

SmartOne is a comprehensive, unified communication platform. It combines a variety of professional functions, such as dispatching, voice recording, AVL and camera monitoring, using one intelligent interface. Regardless of the radio technology you are using, it is possible to integrate and connect several mobile radio networks at the same time, ensuring you are always in control. Single or multi-client, SmartOne is the ideal choice to deliver unified communications and realise the potential of your radio network.
Comprehensive dispatching solution
SmartOne offers powerful dispatching functions, such as voice calls, GPS positioning services, messaging functions and voice recording. The software can also be expanded by a series of plugins, e.g., for displaying IP-connected CCTV cameras. Furthermore, it is possible to integrate browser-based web content, such as big data applications or web-based analysis.
Benefits of Hytera SmartOne
-CALLS
Individual call Group call Emergency call Priority call Broadcast call Network-wide call Call forwarding Call waiting list Include call Zone interconnection Subscriber interconnection DGNA
-POSITIONING SERVICES
GPS positioning Real-time route on the map Individual call on the map DGNA on the map Geofencing alerting
POI (Points Of Interest map marking)
-ENHANCED FUNCTIONS
Ambience listening of radios Discrete monitoring of radios Talk into calls Local voice recording Local logging
-SECURITY FUNCTIONS
Activating / deactivating radios Permanently deactivating radios E2EE
-INTEGRATION AND SCOPE
Integration of dispatching, voice recording, SDS messages, GPS, CCTV cameras and gateway services in one central application Connection of TETRA, DMR (conventional and trunked radio) and Analogue (MPT1327) mobile radio systems as well as private automatic branch exchanges (PABX) and the public telephone network (PSTN) Interconnecting voice calls or message exchange between different radio technologies using a software gateway Support of control room work stations using a graphical expansion to several monitors Flexible integration of web applications using an integrated browser plugin, e.g. for big data applications Wired or wireless connection to the radio systems Complete multi-client capability through individualizable responsibility and functional areas for every SmartOne client.
-MESSAGES
Text message Status message Callback message Emergency
Versatile SmartOne functions
-INTEGRATION OF TETRA, DMR CONVENTIONAL, DMR TRUNKING AND MPT
The application can be connected in parallel to different mobile radio systems. All call, GPS or message activities are consequently merged in to a single user interface, ideal for large, mixed radio fleet system management.
-CROSS-TECHNOLOGY COMMUNICATION
SmartOne connects subscribers of different mobile radio systems. As the gateway, the application is capable of connecting the on-call groups and individual users from the different systems in common voice calls and text messages.
-USER-FRIENDLY AND ADAPTABLE USER INTERFACE
The user interface of every work station can be adapted to the individual requirements of the user. It is possible to create several work areas and to individualise them further using plugins, images and text. You can intuitively adapt the workstation by simply dragging and dropping content.
-WIRED OR WIRELESS CONNECTION
Besides the IP-connected network connection, SmartOne can also be used as a radio dispatcher in all radio technologies. This allows you, for example, to use the dispatcher functions in mobile emergency vehicles.
-SYSTEM ARCHITECTURE
Thanks to its sophisticated system architecture, SmartOne delivers a reliable solution. Utilising server redundancy, every SmartOne work station can connect with two central servers. If the active server fails, the hot-standby server automatically takes over the service and ensures a continuous operation.
-SCALABILITY
SmartOne can be scaled to different system sizes. This ranges from a single stand-alone solution, in which the software is installed on a single workstation computer, up to a complete client-server architecture with central servers and remote workstations.
-CLIENT CAPABLE
The system is designed for multi-client capability. Every SmartOne user can be assigned corresponding radio groups and subscribers. This allocation creates an efficient and sophisticated solution to share responsibility amongst a dispatch team.
| Number of MSS supported by server | 100,000/server | |
| Server voice capacity (in and out) | 1000 call/server | |
| Number of SAP supported by server | 200/server | |
| GPS server processing capacity | 500/second | |
| Client voice capacity (monitor + calling) | 28 call/client | |
| Number of clients | 200/server | |
| Number of MSS supported by the client | 5000/client | |
| Number of MSS that is displayed on the map in a real-time way | 200/second | |
| Required Disk capacity of Server (call/hour) | 30M/(call X hour) | |
| Time Delay | <20ms | |
| Jitter | <10ms | |
| Packet Loss Rate | <0.1% | |
| Bandwidth (for voice) | 80 Kbps/call | |
