TETRA Base Station
DIB-R5
The DIB-R5 compact is a flexibly configurable, lightweight, and compact base station. It is suitable for small-capacity indoor deployment scenarios. This base station offers up to four TETRA carriers and consists of one to two racks depending on capacity requirement. With fully redundant design, it supports triple diversity reception, and TETRA-II standard, providing secure and reliable voice communication and high-speed data transmission in mission-critical communication.
The DIB-R5 is the latest generation of reliable and powerful base stations by Hytera for ACCESSNET-T IP TETRA radio systems. Pioneering TETRA Release 2 and TEDS support make the DIB-R5 exceptionally attractive for all scenarios in which availability and high-speed data are a must.

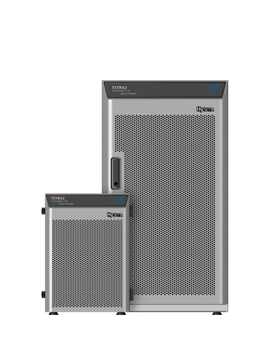

Product variants:
DIB-R5 advanced - modular and flexibly configurable base station with up to eight carriers
DIB-R5 compact - compact 2-carrier variant of the DIB-R5 with integrated hybrid combiner and minimal space requirement, even for the installation in standard 19" equipment racks.
DIB-R5 advanced
The DIB-R5 advanced base station has a modular and flexible design. Main components are the Channel Units (transceivers), the Base Station Control Unit, the power supply and the RF splitting- and filtering equipment.
Based on capacity requirements, one up to four Channel Units can be placed in one equipment rack. A capacity of up to eight carriers can be supported with an extension rack. All components are easily accessible and can easily be replaced. RF and power cabling are connected at the top of the equipment rack.
DIB-R5 compact
The DIB-R5 compact is a compact 2-carrier version with integrated hybrid combiner. With very small floor space and the ability to fit into a standard 19" equipment rack, installation costs are reduced and the transport to a site is simplified.
Use in DIAMANT indoor radio system
The DIAMANT indoor radio system is an intelligent solution to offer emergency services of the public safety organizations an absolutely reliable radio communication in the event of an emergency. The DIB-R5 compact in this solution is used as a base station for the provision of radio coverage. Learn more about the TETRA indoor radio system DIAMANT on the pages of our partner B-SCHMITT.
TETRA Enhanced Data Service (TEDS) capability
The DIB-R5 is already prepared for a channel bandwidth of up to 150 kHz to support even higher data rates. The DIB-R5 Channel Units (transceivers) can be configured to support both, TETRA 1 PSK modulation for voice as well as TETRA 2 QAM modulation for TEDS. This simplifies spare part handling and allows a later upgrade to TEDS.
Redundancy options
Important modules can be configured redundantly and are hot-swappable. Each base station supports transmission link redundancy and can be connected to two switching nodes. Sites under heavy load can be equipped with up to four control channels (SCCH) to provide additional capacity for signaling, text messaging or location update.
RF performance
Different RF antenna coupling system configurations are supported, including motor tuned Cavity-Combiner allowing remote frequency change.
With its high output rating of 25 W PSK modulated with Cavity-Combiner at the antenna connector, reliable coverage is ensured. Up to four RF carriers are supported in one equipment rack and up to eight carriers with a further equipment rack (for DIB-R5 advanced)
Triple receiver diversity
The DIB-R5 supports 3-way receiver (Rx) diversity and highest sensitivity to optimize the base stations radio characteristics and to reduce the number of base stations required to cover a certain area.
Reliability
If the DIB-R5 should be isolated from the rest of the network, it still provides most of its features in local fallback operation. Especially security-related features like authentication and air interface encryption are supported.
GPS/Galileo/Glonass-based synchronization
The DIB-R5 can operate with GPS-/Galileo-/Glonass-based synchronization, but also a permanent operation without satellite-based synchronization sources is supported. This allows a reliable operation even in underground areas or within buildings without the need of using an antenna for the reception of a satellite signal.
| General | |
|---|---|
| Transmitting power (antenna socket) | 44 dBm with π/4DQPSK modulation 40 dBm with QAM modulation |
| Reception | Triple diversity |
| Sensitivity | -119 dBm static(BER 4%) -113 dBm dynamic (TU50 [TCH 7.2, BER 4%]) -110 dBm dynamic (class B) -108 dBm dynamic (class A) with pi/4DQPSK |
| Synchronization | GNSS (GPS, Galileo, Glonass) Operation without GNSS is possible when PTP is used. |
| Connection to the transport network | IP E1 optional |
| Current consumption | 1300 Watt max. with 4 carriers |
| Digital external alarm inputs and outputs | 16 input 4 output |
| Antenna connector Tx | 7/16" |
| Antenna connector Rx | 3*7/16" |
| Local network connector | RJ45 |
| DIB-R5 advanced | |
|---|---|
| Dimensions (W x H x D) | 600 mm x 1200 mm x 600 mm |
| Weight | maximum 161 kg The weight depends on the respective configuration. |
| Power consumption | 1500 W with a max. of 4 carriers (for 44 dBm at antenna socket) |
| DIB-R5 compact | |
|---|---|
| Dimensions (W x H x D) | 450 mm x 640 mm x 540 mm |
| Weight | 60 to 80 kg The weight depends on the respective configuration. |
| Power consumption | 850 W with a max. of 2 carriers (for 44 dBm at antenna socket) |
| Environmental conditions | |
|---|---|
| Operating temperature range | -30 °C to +55 °C |
| Storage temperature range | -40 °C to +70 °C |
| Relative humidity | 5% to 85% (non-condensing) |
Configuration options | |
|---|---|
| Redundant controller | |
| Duplexer | Tx combining with one of the Rx antennas |
en_DIB-R5 Brochure update: 2024-11-19 |
