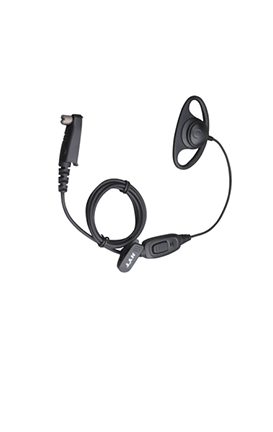

Common Earpiece

EHN07

Highlights:
1) Featured with a plastic clip.
2) PTT-in-line design.
3) Comfortable to wear with D-style earset.
4) Volume adjustable, and VOX realizable.


Speaker Specifications:
Sensitivity: 119±3dB(Single part)
Rated Power: 50mW   Max. Power: 100mW
Distortion (typical): <5% @ 1KHz
Speaker Impedance: 150Ω±15% @1KHZ


Microphone Specifications:
Sensitivity:
-42±3dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa

Operating Temperature: -20℃~60℃

Application: for users engaged in retailing, entertainment, hospitality, food service and community management industries, as well as public security areas.

Compatible Radios: TC-780M, TC3000, TC3600, TC3600M, TC-780, TC-610P, TC-880GM,TC-700P
